Identify hotspots in your code
ALM Octane uses commit information to help you, the developer, identify hotspots in the code. Once identified, you can minimize risks associated with updating the code. ALM Octane also displays a risk indication for commits that include changes to hotspot files, and for features associated with such risky commits.
Use hotspots to minimize risks
Hotspots are files that contain sensitive code, which is risky to change. The code might be too complex, or the functionality it covers might be insufficiently tested.
To reduce the risk of future changes causing quality issues:
Simplify and refactor the code.
Increase testing of this code's functionality.
ALM Octane uses commit information to identify hotspots.
Hotspot. ALM Octane considers a file a hotspot if it was recently changed when fixing a defect.
Hotspot level. The hotspot level is the level of potential risk when changing code in a hotspot. A high hotspot level indicates that changing this code has a high risk of introducing regressions or other quality issues.
ALM Octane determines the hotspot level based on the following criteria:
- The number of defects associated with this file.
- The age of the changes made to this file.
This means the level is time-sensitive. Over time, if no additional defect-related changes are committed on a hotspot file, its hotspot level diminishes.
The hotspot widget in the Dashboard displays a heatmap of your code base folders, highlighting areas by hotspot level.
- Make sure a pipeline was created on a CI server that works with an SCM system. For details, see Create and configure pipelines.
- Make sure to associate your commits with the relevant ALM Octane stories using commit messages. For details, see Customize SCM change patterns.
To configure the widget:
In the Dashboard module, locate the Hotspots files in repository (by folder) widget.
If it is not displayed, click + and add the widget to your dashboard.
Configure the widget to show the code base you want to assess:
In the Scope tab, select a Repository and a Base folder for risk assessment.
The lists to select from include the repositories and folders available via the CI server SCM integration.

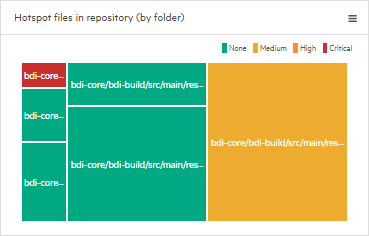

After you Set up the hotspot dashboard widget, the widget displays a heatmap of your code base folders, highlighting areas by hotspot level. The hotspot level of a folder is the average hotspot level of the files in that folder.
To assess potential risk using the widget:
Check which folders contain a higher percentage of hotspots.
Each area in the heatmap represents a folder under the base folder, regardless of folder structure.
The size of each area indicates the amount of files in the folder.
Note: ALM Octane analyzes only files that were changed in SCM commits discovered as part of a pipeline run.
Over time, this will cover more and more of your code base.
The color of each area indicates the hotspot level. This is the level of potential risk in changing a hotspot file.

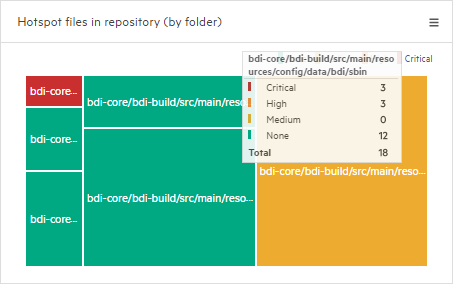

Hover over an area in the heatmap to see a breakdown of the hotspot levels within a specific folder. You can see the number of files in the folder for each level.

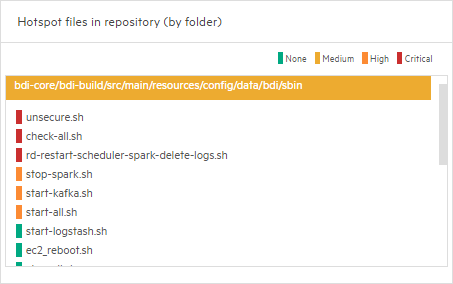

Click an area in the heatmap to see the hotspot levels of each file in the folder.
ALM Octane displays a risk indication for commits that include changes to hotspot files and for features associated with such commits.
- Identifying risky commits can help isolate the problem when analyzing pipeline failures.
- Identifying features at risk can help assess feature release readiness.
Examples for using the risk indication
In the Pipelines module, open a failed pipeline run's Analysis > Test Runs tab.
Select the failed test run and open the Commits tab on the right.
If a related commit is marked as risky , check whether it is the cause of the failure.
- In the Team Backlog module, open the Commits tab.
- Add the Risk column to the grid if it's not there.
- If many commits are marked as risky, this means that hotspot files are being changed. You may want to discuss additional testing or code refactoring with your team.
In the Backlog module, open the Features tab.
If a feature is associated with risky commits, the risk indication is displayed on the feature in the Smart List view. You can see how many of the commits for this feature were risky.
In the grid view, use the Risky Commit Count column.

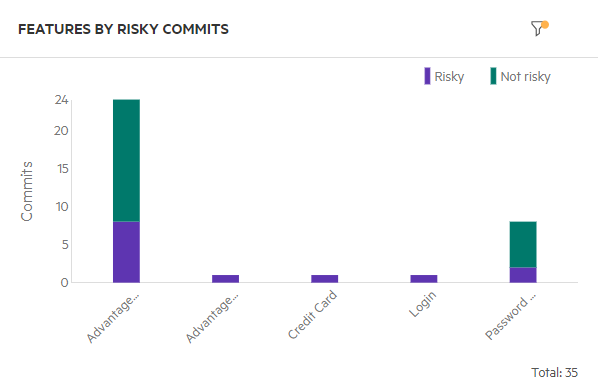

In the Dashboard, use the Features by risky commits dashboard widget.
- Unknown. Commits not associated with any backlog item via commit message.
- Backlog. Commits associated with backlog items that do not belong to a specific feature.

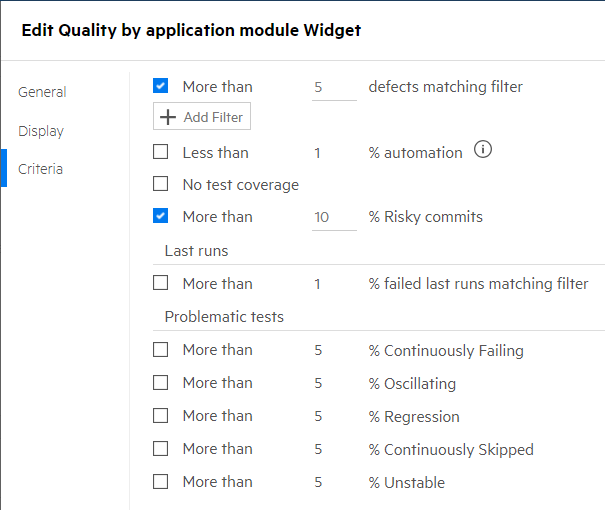

Include the percentage of risky commits in the criteria used by the Quality by application module dashboard widget. Application modules in this heatmap are marked red for attention if they are associated with more risky commits than the threshold you define.
