Parameters/Checkpoints Tab (Properties Pane - API Testing)

1. Open the Properties pane.

2. Select one of the following in the canvas.

   • The Start or End steps

   • The Test Flow

   • A test step

3. In the Properties Pane, select the tab. This tab's name and content depend on the test step you selected.

The name of this tab depends on the test step you select:

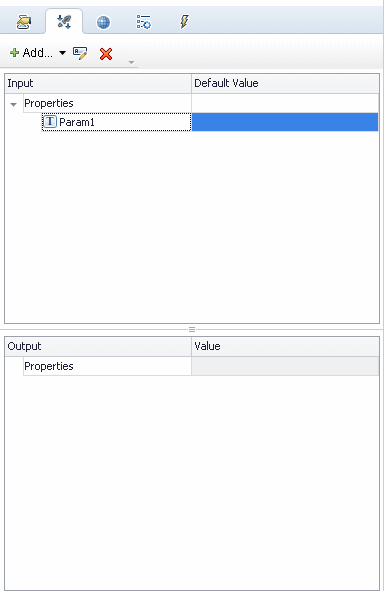

• If you selected a Start or End steps, this tab is Test Input/Output Parameters.

• If you selected the test flow, this tab is Input.

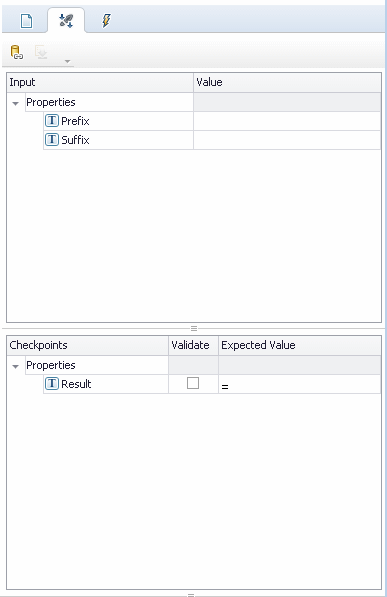

• If you selected any other step, this tab is Input/Checkpoints.

A list of all available properties.

Opens the Edit Input/Output Property/Parameter Dialog Box (API Testing) which enables you to define custom input and output properties or parameters for your test.

Edit Parameter. When a property/parameter is selected, opens the Edit Input/Output Property/Parameter Dialog Box (API Testing) , enabling you to edit any custom input or output properties/parameters

Repeats the loop as long as the specified condition is met:

• Variable. The variable to evaluate. Use the Select Link Source button to enter a data source expression.

• Operator. A comparison operator relevant to the variable such as =, !=, Contains, Starts and Regex.

• Value. The value with which to compare the result.

Performs iterations until the event returns True. This mode is useful for complex conditions that can be defined in an event handler. When you select this option, the Input Properties grid opens.

• Click to define properties.

• Click to open the Events view. Click Create a default handler in the Handler column.

• Modify or add code to the event handler method that defines your condition.

Performs an iteration for each element in the associated array or collection of objects. Data is selected using the Select Link Source button .

Performs the Test Flow or custom loop the number of times that you specify in the Number of Iterations box.

A list of all available properties. The fields differ per step type:

• For most activities: The activity's Input properties.

• For Web Service, REST Service, and WADL methods:

  • the properties as designed in the WSDL or WADL file (for Web Service or Web Application methods),
  • The custom input or output properties defined for your REST method in the REST Service editor. For details on creating input or output properties for REST Service methods, see Define custom properties - optional.

A list of the step's output properties/parameters, displaying the following columns:

• Checkpoints. A list of the output properties/parameters.

• Validate. When selected, OpenText Functional Testing validates the current output properties/parameters when running the step. When cleared, OpenText Functional Testing does not check the output properties/parameters.

• Expected Value. The expected value for the output parameter. Select the down arrow to view a drop down list of comparison operators, number scrolling, and boolean values. You can also manually enter the expected value into the cell.

Additional checkpoint properties include:

• Trim whitespace (from start and end of string). Removes whitespace before and after the text.

• Ignore case. When looking for a match, ignores the case.

• Stop test if checkpoint fails. Exits the test run if the checkpoint fails. You set this individually for each checkpoint.

Checkpoints options for Web Service and SOAP request steps include:

• Send request to service. Sends the step's request to the service when running the test. This is the normal behavior for Web Services and most types of actions. It is enabled by default.

  Note: To send messages using JMS transport, clear this checkbox. Link a subsequent JMS step to the output of this step. For Web services, you can set the security settings and include attachments, and send this over JMS.

• Validate Structure. Validates that the service's response—either for the response defined in the operation or a SOAP Fault response-- is in conformance with the schema defined in the imported XSD for the service. The run results indicate whether or not the validation succeeded.

  Note: This checkpoint does not validate the XML schema values, just the tags of the XML schema

  This option is available only when the Send request to server option is enabled. It is enabled by default.

  Note: If you modify the elements in the response, this will not affect the response schema. For example, adding array elements, selecting specific Choice elements, changing the derived type, affect only the response—not the schema. To validate the element values, specify expected values in the Value column or use an XPath expression.

• Validate WS-I. Adds a checkpoint to verify that the SOAP response in compliance with WS-I standards. The run results indicate whether the response was in compliance. It also provides a View Report link that opens the WS-I Validation report in a separate window.

For steps with XML output properties (such as String to XML), the following additional options are relevant:

• XML tab. A grid representation of the response's schema. In this section you can enter the expected response values. Use the following options to enter your XML:

  • Import Schema. Imports a schema for the XML response.

  • Load XML. Loads an XML file as a basis for the schema of the response.

  • Clear. Removes the displayed schema.

• XPath tab. A list of XPath expressions used to evaluate the XML response. Use the following options to use XPath expressions:

  • Adds a line for a new XPath expression.

  • Removes the selected XPath expression.

  • Ignore namespaces: Ignores namespaces in the XPath validation, allowing you to use simple XPath expressions. For details, see Set XPath checkpoints.

Provides shortcuts for including properties and setting their values.

• Collapse/Expand All. Displays or hides the list of array elements.

• Set Auto-value. Inserts a sample value for the argument, based on its data type.

• Include/Include All. Includes the current or all Choice input properties in the test run.

• Exclude/Exclude All. Excludes the current or all Choice input properties from the test run.

• Copy XPath. Copies a simplified XPath expression to the clipboard. For details, see XPath checkpoints.

• Copy Fully Qualified XPath. Copies the complete XPath expression of the value to the clipboard.

• Link to Data Source. Opens the Select Link Source Dialog Box (API Testing)

• Clear Cell Contents. Clears the contents of the cell.

Provides shortcuts for including properties and setting their values.

• Remove Array Element. Removes the selected array element.

• Duplicate Array Element. Duplicates the selected array element with its values.

• Select All. Selects/clears the Validate checkbox for all child array elements.

• Expand/Expand All. Expands all elements included in an array.

• Collapse/Collapse All. Controls the display of array elements.

• Clear/Clear All. Clears the selected or all checkboxes for validation.

• Set Auto-value. Inserts a sample value for the argument, based on its data type.

• Copy XPath. Copies a simplified XPath expression to the clipboard. For details, see XPath checkpoints.

• Copy Fully Qualified XPath. Copies the complete XPath expression of the value to the clipboard.

• Link to Data Source. Opens the Select Link Source Dialog Box (API Testing).

• Display Outgoing Links. Lists the property's outgoing links. For details, see Outgoing Links.

• Insert Keyword. Insert a keyword in the Expected Value column. The available keywords are #NIL#, #EXISTS#, #NOT_FOUND#, and #SKIP#.
