Call Stack pane

This debug pane enables you to view information about the functions that are currently on the call stack of your script.

Item Description

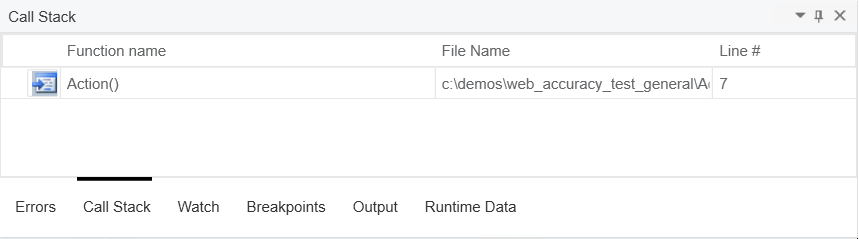

UI Example Call Stack pane
To access
View > Debug > Call Stack
Important information
  • This pane is relevant only when a run session is paused.
  • You can double-click any element in the Call Stack pane to navigate to the beginning of the relevant function/action.

  • This pane is read-only.
  • You can move this pane to different areas of the Main User Interface. For details, see How to modify the VuGen layout.
See also

User interface elements are described below:

UI Element
Description
Function name The name of the function currently called.
File name The name of the file containing the called function.
Line # The line number on which the function definition begins.
