RabbitMQ Connector Configuration

The RabbitMQ connector connects to a RabbitMQ broker using the AMQP-0-9-1 protocol.

Example of connector configuration in sv-lab.json:

"connector": [
  {
    "id": "connector",
    "connectorType": "rabbitMq",
    "properties": {
      "brokerUri": "amqp://localhost:5672/",
        "username": "guest",
        "password": "guest"
      }
    }
],

Endpoint configuration

The client and service can communicate through a RabbitMQ exchange:

In a simpler setup, they can use only a queue without exchange:

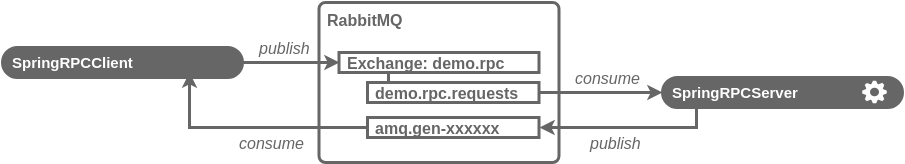

The communication can be one-way or the request-response message exchange pattern can be in place:

Depending on intended modes of virtual service and message exchange pattern used the RabbitMQ endpoint is configured with up to 4 destinations:

Destination	Used by virtual service for	Direction	Service modes
virtual request	receiving requests from clients	INPUT	FORWARD, SIMULATE
virtual response	sending responses to clients	OUTPUT	FORWARD, SIMULATE
real request	sending requests to real service	OUTPUT	FORWARD, INVOKE
real response	receiving responses from real service	INPUT	FORWARD, INVOKE

Each of the endpoint destinations can be configured to use either an exchange or a static or dynamic queue. It is possible to combine exchanges with queues in one endpoint.

Exchange
- The virtual service receives messages from the virtualRequestQueue and/or the realResponseQueue. The virtualRequestExchange and/or realResponseExchange can be optionally provided so that SV will declare the exchange for client and/or the real service.
- The virtual service sends messages to the virtualResponseQueue and/or realRequestQueue with routing key specified in the amqp:routing-key message header or the corresponding virtualResponseDefaultRoutingKey or realRequestDefaultRoutingKey.
- When the provided exchange and/or queue does not exist, SV will declare it and bind the provided static queue to the exchange with one or more binding keys provided as a comma separated list of keys.
- The binding keys can use simple * and multiple # wildcards.
Static queue
- The virtualRequestQueue and realResponseQueue is used to receive input messages.
- The virtualResponseQueue and realRequestQueue is used to send output messages. The static destination can be overriden by the amqp:reply-to header of corresponding request message.
- When the queue does not exist, SV will declare it.
Dynamic queue
- Used in request-response message exchange pattern when the queue for response is provided with each request using amqp:reply-to header.
- The corresponding virtualResponseQueue or realRequestQueue destination of endpoint is ommited when using dynamic queue or it can contain a default, fallback destination to target the message in case the amqp:reply-to header is missing.

Note

Some optional destination properties are not used for message routing but for SV Lab to declare queues and or exchanges and to bind queues to exchanges when the client and/or real service expects that the destinations exist.

Note

The queues and exchanges declared by SV Lab are deleted when the virtual lab is undeployed.

RabbitMQ connector configuration properties

Mandatory properties are bold. Other properties are optional.

Property	Description
brokerUri	(string) The broker URI, i.e. `amqp://localhost:5672/myVirtualHost` or `amqps://localhost:5671/`
username	(string) Username for authentication with broker.
password	(string) Password for authentication with broker.

RabbitMQ endpoint configuration properties

Mandatory properties are bold. Other properties are optional.

Property	Default Value	Description
virtualRequestQueue		(string) The queue for receiving requests from clients. (1)
virtualRequestQueueDurable	false	(boolean) Whether the queue should be declared as durable. (3)
virtualRequestQueueExclusive	false	(boolean) Whether the queue should be declared as exclusive. (3)
virtualRequestQueueAutodelete	false	(boolean) Whether the queue should be declared with autodelete flag. (3)(6)
virtualRequestExchange		(string) The exchange to declare for receiving requests from clients. Plain `virtualRequestQueue` can be used without exchange. (2)
virtualRequestExchangeType		(string) Exchange type used when the exchange is being declared. (3)(4)
virtualRequestExchangeDurable	false	(boolean) Whether the exchange should be declared as durable. (3)
virtualRequestExchangeAutodelete	false	(boolean) Whether the exchange should be declared with autodelete flag. (3)(6)
virtualRequestBindingKeys		(string) Comma-separated list of keys to bind receiving queue to exchange. (3)

virtualResponseQueue		(string) The queue where clients receive responses. Optional, the client can provide response queue with `replyTo` header. (1)
virtualResponseQueueDurable	false	(boolean) Whether the queue should be declared as durable. (3)
virtualResponseQueueExclusive	false	(boolean) Whether the queue should be declared as exclusive. (3)
virtualResponseQueueAutodelete	false	(boolean) Whether the queue should be declared with autodelete flag. (3)(6)
virtualResponseExchange		(string) The exchange for sending responses to clients. Plain `virtualResponseQueue` can be used without exchange. (2)
virtualResponseExchangeType		(string) Exchange type used when the exchange is being declared. (3)(4)
virtualResponseExchangeDurable	false	(boolean) Whether the exchange should be declared as durable. (3)
virtualResponseExchangeAutodelete	false	(boolean) Whether the exchange should be declared with autodelete flag. (3)(6)
virtualResponseBindingKeys		(string) Comma-separated list of keys to bind receiving queue to exchange. (3)
virtualResponseDefaultRoutingKey		(string) Default routing key for sending simulated responses to clients through exchange. (5)

realRequestQueue		(string) The queue where service receives requests. Optional, the client can provide a queue with `replyTo` header for solicit response in invocation mode. (1)
realRequestQueueDurable	false	(boolean) Whether the queue should be declared as durable. (3)
realRequestQueueExclusive	false	(boolean) Whether the queue should be declared as exclusive. (3)
realRequestQueueAutodelete	false	(boolean) Whether the queue should be declared with autodelete flag. (3)(6)
realRequestExchange		(string) The exchange for sending requests to service. Plain `realRequestQueue` can be used without exchange. (2)
realRequestExchangeType		(string) Exchange type used when the exchange is being declared. (3)(4)
realRequestExchangeDurable	false	(boolean) Whether the exchange should be declared as durable. (3)
realRequestExchangeAutodelete	false	(boolean) Whether the exchange should be declared with autodelete flag. (3)(6)
realRequestBindingKeys		(string) Comma-separated list of keys to bind the queue to exchange. (3)
realRequestDefaultRoutingKey		(string) Default routing key for sending simulated responses to clients through exchange. (5)

realResponseQueue		(string) The queue to receive responses from service.
realResponseQueueDurable	false	(boolean) Whether the queue should be declared as durable. (3)
realResponseQueueExclusive	false	(boolean) Whether the queue should be declared as exclusive. (3)
realResponseQueueAutodelete	false	(boolean) Whether the queue should be declared with autodelete flag. (3)(6)
realResponseExchange		(string) The exchange to declare for receiving responses from service. Plain `realResponseQueue` can be used without exchange. (2)
realResponseExchangeType		(string) Exchange type used when the exchange is being declared. (3)(4)
realResponseExchangeDurable	false	(boolean) Whether the exchange should be declared as durable. (3)
realResponseExchangeAutodelete	false	(boolean) Whether the exchange should be declared with autodelete flag. (3)(6)
realResponseBindingKeys		(string) Comma-separated list of keys to bind the queue to exchange. (3)

Notes:

[1] When specified and the queue does not exist, the queue is declared by SV.
[2] When specified and the exchange does not exist, the exchange is declared and the queue bound to it with provided binding keys.
[3] Used only when the corresponding queue or exchange does not exist and it is being declared.
[4] One of direct, fanout, topic or headers. Exchange types are explained in RabbitMQ documentation.
[5] Used when sending simulated message through exchange (response in simulation, request in invocation mode) and the model message does not specify routing key via the amqp:routing-key property.
[6] The exchanges and queues declared by SV Lab get deleted when the virtual gets undeployed regardless of the autodelete attribute. Setting the autodelete attribute to true may cause unintended behavior when client disconnects and reconnects to RabbitMQ broker while virtual lab is deployed and the exchange and queue used by client get deleted by broker.
